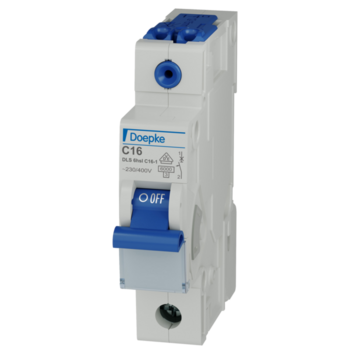

Miniature circuit-breakers protect cables, conductors, and installation devices against overload and short circuit. Each of our circuit-breakers is equipped with a trip-free mechanism that ensures safe disconnection – even if the toggle is mechanically blocked. Our screwless DLS 6hsl MCBs are designed for distribution and final circuits. Thanks to their top-mounted screwless plug-in terminals, they can be installed with ease. Their rated breaking capacity is 6 kA. With tripping characteristic C, these circuit-breakers ensure reliable protection for your circuits with loads that generate higher inrush peaks.

rated switching capacity 6 kA, top screwless plug-in terminal for quick and easy mounting, bottom screw terminals with strain-relief clamps with wide terminal cross-section range for rails , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge

quick fastening to mounting rail, any installation position

suitable for use in power supplies for residential and purpose-built buildings or buildings for commercial use
