operating current trip DASA 12

09917992, Operating current trip for DLS 6

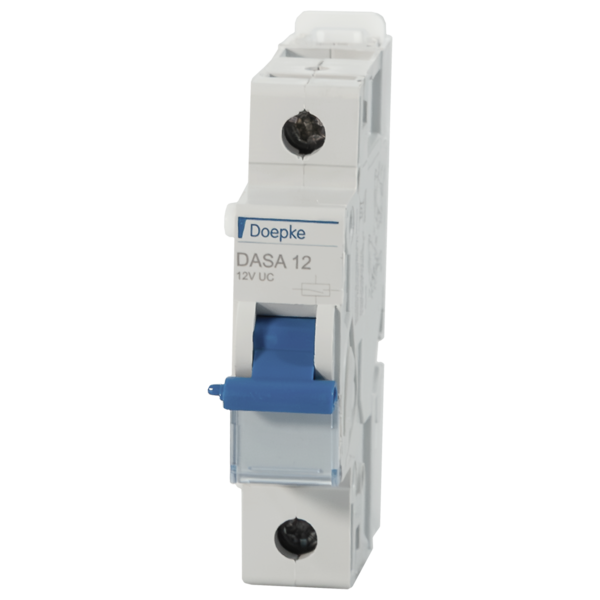

* Picture similar to the actual unit
  • Function: Shunt release
  • suitable for model range DLS 6

operating current trip DASA 12

09917992, Operating current trip for DLS 6
* Picture similar to the actual unit
  • Function: Shunt release
  • suitable for model range DLS 6

Details

Operating current trip for DLS 6

Operating current trips enable the remote tripping of, e.g. miniature circuit-breakers. The operating current trip is activated by an operating current from an external voltage source. Operating current trips for remote tripping of miniature circuit-breakers of series DLS 6. The operating current trip does not affect the protective function of the miniature circuit-breaker.

can be easily retrofitted, low power consumption for activation, trips with different operating voltages available (DASA)

mounting by clamping to the right of the miniature circuit-breaker , quick fastening to mounting rail, any installation position

The operating current trips are used in conjunction with the associated DLS circuit breakers for remote tripping.

Operating current trip for DLS 6

Operating current trips enable the remote tripping of, e.g. miniature circuit-breakers. The operating current trip is activated by an operating current from an external voltage source. Operating current trips for remote tripping of miniature circuit-breakers of series DLS 6. The operating current trip does not affect the protective function of the miniature circuit-breaker.

can be easily retrofitted, low power consumption for activation, trips with different operating voltages available (DASA)

mounting by clamping to the right of the miniature circuit-breaker , quick fastening to mounting rail, any installation position

The operating current trips are used in conjunction with the associated DLS circuit breakers for remote tripping.
