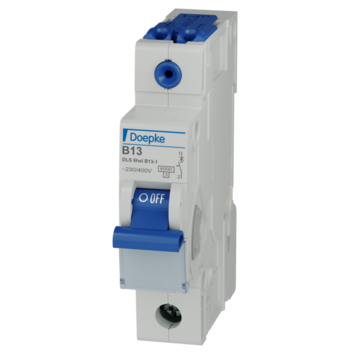

miniature circuit-breakers DLS 6hsl B13-1

09917022, Circuit-breakers, one-pole, characteristic B, 13 A, 6 kA, screw-less

miniature circuit-breakers DLS 6hsl B13-1

09917022, Circuit-breakers, one-pole, characteristic B, 13 A, 6 kA, screw-less

Details

Circuit-breakers, one-pole, characteristic B, 13 A, 6 kA, screw-less

The task of miniature circuit breakers is to automatically disconnect circuits in order to protect lines and connected devices. After disconnection, they can be manually reactivated without the fuse sets having to be replaced, for example. Each of our miniature circuit breakers is equipped with a trip-free mechanism, which guarantees safe deactivation even if, for example, a switching knob is mechanically blocked. The DLS 6 miniature circuit-breaker variant protects cables, lines and installation devices from overload and short-circuits as laid down in DIN VDE 0100. The variant comprises a large selection of different types for switching in residential and purpose-built buildings, and for industrial applications. Its compact design means the DLS 6 miniature circuit-breaker provides maximum space for ease of wiring. The large clamping area and ability to use commercial wiring rails ensure simple installation. It is also possible to connect a number of additional devices such as operating current trip and auxiliary/fault sensors. With its rated switching capacity of 6 kA, the screwless DLS 6hsl variant for skilled trade is suited to distributor and final circuits. It is particularly easy to use with screwless plug-in terminals on the top. Switches with tripping characteristic B ensure the standard protection for lighting and socket circuits.

rated switching capacity 6 kA, top screwless plug-in terminal for quick and easy mounting, bottom screw terminals with strain-relief clamps with wide terminal cross-section range for rails , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge

quick fastening to mounting rail, any installation position

suitable for use in power supplies for residential and purpose-built buildings or buildings for commercial use

Circuit-breakers, one-pole, characteristic B, 13 A, 6 kA, screw-less

The task of miniature circuit breakers is to automatically disconnect circuits in order to protect lines and connected devices. After disconnection, they can be manually reactivated without the fuse sets having to be replaced, for example. Each of our miniature circuit breakers is equipped with a trip-free mechanism, which guarantees safe deactivation even if, for example, a switching knob is mechanically blocked. The DLS 6 miniature circuit-breaker variant protects cables, lines and installation devices from overload and short-circuits as laid down in DIN VDE 0100. The variant comprises a large selection of different types for switching in residential and purpose-built buildings, and for industrial applications. Its compact design means the DLS 6 miniature circuit-breaker provides maximum space for ease of wiring. The large clamping area and ability to use commercial wiring rails ensure simple installation. It is also possible to connect a number of additional devices such as operating current trip and auxiliary/fault sensors. With its rated switching capacity of 6 kA, the screwless DLS 6hsl variant for skilled trade is suited to distributor and final circuits. It is particularly easy to use with screwless plug-in terminals on the top. Switches with tripping characteristic B ensure the standard protection for lighting and socket circuits.

rated switching capacity 6 kA, top screwless plug-in terminal for quick and easy mounting, bottom screw terminals with strain-relief clamps with wide terminal cross-section range for rails , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge

quick fastening to mounting rail, any installation position

suitable for use in power supplies for residential and purpose-built buildings or buildings for commercial use
