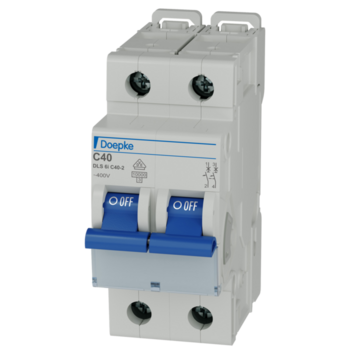

Circuit-breakers, C-characteristic, 40 A/230 V, 400 V AC, 40 A/125 V DC, 10 kA, for industrial facilities
The task of miniature circuit breakers is to automatically disconnect circuits in order to protect lines and connected devices. After disconnection, they can be manually reactivated without the fuse sets having to be replaced, for example. Each of our miniature circuit breakers is equipped with a trip-free mechanism, which guarantees safe deactivation even if, for example, a switching knob is mechanically blocked. The DLS 6 miniature circuit-breaker variant protects cables, lines and installation devices from overload and short-circuits as laid down in DIN VDE 0100. The variant comprises a large selection of different types for switching in residential and purpose-built buildings, and for industrial applications. Its compact design means the DLS 6 miniature circuit-breaker provides maximum space for ease of wiring. The large clamping area and ability to use commercial wiring rails ensure simple installation. It is also possible to connect a number of additional devices such as operating current trip and auxiliary/fault sensors. Its high rated switching capacity of 10 kA means the DLS 6i variant is particularly suited to usage in industrial systems. Switches with tripping characteristic C are optimised for power circuits with high inrush or peak currents.
rated switching capacity 10 kA, screw terminals with strain-relief clamps with wide terminal cross-section range for rail and line wiring on both connection sides , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge
quick fastening to mounting rail, any installation position
suitable for use in power supplies for industrial facilities and purpose-built buildings or buildings for commercial use
- Text for invitation to tender GAEB 90
- Dimensional drawing Group view
- STEP file
- Wiring diagram
- Characteristic Char. B, C, D
- Diagram Derating
- Labelling software DFS/DLS
- Mounting instruction
- Data sheet
- Technical information dissipation power DLS 6
- Technical information Derating curve for DLS 6
- Manual Miniature circuit-breakers - Application notes and technical information
- Text for invitation to tender RTF
- Text for invitation to tender GAEB XML
- Text for invitation to tender GAEB 2000
Circuit-breakers, C-characteristic, 40 A/230 V, 400 V AC, 40 A/125 V DC, 10 kA, for industrial facilities
The task of miniature circuit breakers is to automatically disconnect circuits in order to protect lines and connected devices. After disconnection, they can be manually reactivated without the fuse sets having to be replaced, for example. Each of our miniature circuit breakers is equipped with a trip-free mechanism, which guarantees safe deactivation even if, for example, a switching knob is mechanically blocked. The DLS 6 miniature circuit-breaker variant protects cables, lines and installation devices from overload and short-circuits as laid down in DIN VDE 0100. The variant comprises a large selection of different types for switching in residential and purpose-built buildings, and for industrial applications. Its compact design means the DLS 6 miniature circuit-breaker provides maximum space for ease of wiring. The large clamping area and ability to use commercial wiring rails ensure simple installation. It is also possible to connect a number of additional devices such as operating current trip and auxiliary/fault sensors. Its high rated switching capacity of 10 kA means the DLS 6i variant is particularly suited to usage in industrial systems. Switches with tripping characteristic C are optimised for power circuits with high inrush or peak currents.
rated switching capacity 10 kA, screw terminals with strain-relief clamps with wide terminal cross-section range for rail and line wiring on both connection sides , special quick fastening for removal of multiple miniature circuit-breakers from the bottom or top interconnection, large, folding label window for a secure hold and protection of the label, use of conventional wiring rails, ON/OFF switch position indicator on the switch toggle, accessories retro-fittable on the right, labelling software free of charge
quick fastening to mounting rail, any installation position
suitable for use in power supplies for industrial facilities and purpose-built buildings or buildings for commercial use
