light control devices LSG 4 DALI
Details

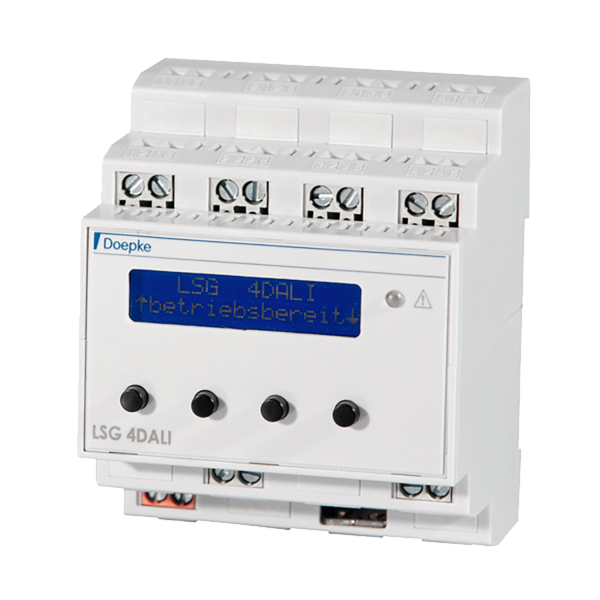

DALI Gateway 24 V DC for 64 slaves
interface for a DALI bus with up to 64 devices, 16 lighting groups and 16 lighting scenes, configuration of DALI devices (dimming speed etc.), integrated voltage supply for the DALI bus, short-circuit and overload detection on the DALI bus, easy, user-friendly configuration via two-line display with 16 characters each line, manual control option via the display, compact design with just 4 module width , 8 bidirectional inputs 24 V DC for activating lighting groups and lighting scenes and for reporting the switching statuses of any groups, 2 separate inputs 24 V DC for central-OFF and central-ON, lighting groups and lighting scenes can be combined across gateways, configurable behaviour when DALI bus fails and power supply is restored
quick fastening to mounting rail, any installation position
The DALI bus allows for the implementation of mainly room-related applications, such as lighting control in conference and multi-purpose halls, lighting scenes in dining areas, individual lighting in meeting and seminar rooms and accent lighting in sales showrooms. It is also excellently suited to control RGB LEDs for effect lighting.
