residual current circuit-breaker DFS 4 040-4/0,30-AC R
- sensitive to alternating currents, mains-voltage-independent
- minimal power dissipation at each pole
- large connection terminals up to 50 mm²
residual current circuit-breaker DFS 4 040-4/0,30-AC R
- sensitive to alternating currents, mains-voltage-independent
- minimal power dissipation at each pole
- large connection terminals up to 50 mm²
Details

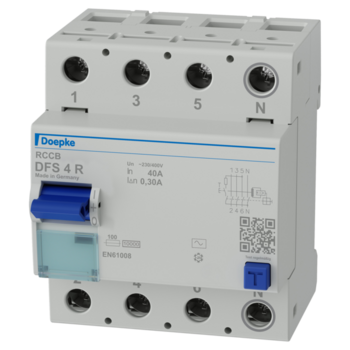

Residual current circuit-breakers, four-pole, 40 A, 0,3 A, Type AC, N right
Residual current circuit-breakers (RCCB) switch the power supply off if dangerous high residual currents occur. DFS 4 are two-terminal or two-terminal pair residual current circuit-breakers for single- or three-phase networks. In the standard design, the compact devices are just four module widths wide. They are available with many different residual current types and variants for rated currents up to 125 A. The large two-tier terminals can also accommodate large conductor cross-sections. The trip position of the multi-function toggle switch simplifies fault-finding. The free label software helps in the labelling process. Type AC switches only detect AC residual currents. As a result, in Germany they are not approved as residual current operated protective devices. Devices in the standard design are intended for monitoring circuits with a rated voltage of 230 V, 400 V and a rated frequency of 50 Hz.
tripping not dependent on mains and auxiliary voltage, sensitive to AC residual currents (type AC) , compact design for all rated currents, high short-circuit resistance, double-sided two-tier terminals for large conductor cross-section and busbar, switch position indicator, viewing window for labels, multifunction switch toggle with three positions: "on", "off" and "tripped", Neutral conductor position right
quick fastening to mounting rail, any installation position, supply from any direction
Power supplies to residential and purpose-built buildings as well as industrial facilities with TN-S, TT and TN-C-S networks. In IT networks, the residual current circuit-breakers of this series can be set to switch off in the event of a second fault, Not permitted for use in TN-C networks; not permitted for protecting systems in which electronic equipment may cause pulsating or smooth DC residual currents or residual currents with frequencies not equal to 50 Hz. Comprehensive protection is not provided with an RCCB type AC. For these applications we recommend our residual current circuit-breaker type A or our AC/DC sensitive residual current circuit-breaker type B/B+.
