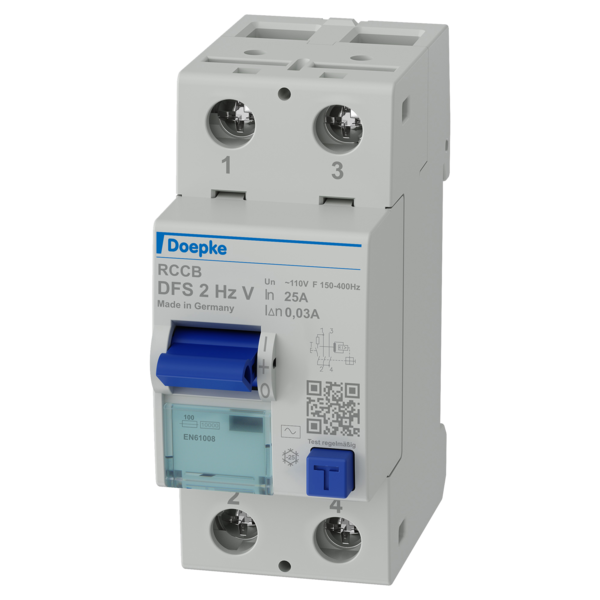

residual current circuit-breaker DFS 2 025-2/0,03-AC Hz400 V110

09124634, Residual current circuit-breakers, two-pole, 25 A, 0,03 A, Type AC, 150 Hz ... 400 Hz/110 V, N left or right
Achtung
The use of these devices is not permitted in all countries. Pay attention to the according national installation regulations.
  • sensitive to alternating currents, mains-voltage-independent
  • Rated frequency 150 Hz ... 400 Hz / Rated voltage (AC) 110 V
  • minimal power dissipation at each pole
  • large connection terminals up to 50 mm²

residual current circuit-breaker DFS 2 025-2/0,03-AC Hz400 V110

09124634, Residual current circuit-breakers, two-pole, 25 A, 0,03 A, Type AC, 150 Hz ... 400 Hz/110 V, N left or right
Achtung
The use of these devices is not permitted in all countries. Pay attention to the according national installation regulations.
  • sensitive to alternating currents, mains-voltage-independent
  • Rated frequency 150 Hz ... 400 Hz / Rated voltage (AC) 110 V
  • minimal power dissipation at each pole
  • large connection terminals up to 50 mm²

Details

Residual current circuit-breakers, two-pole, 25 A, 0,03 A, Type AC, 150 Hz ... 400 Hz/110 V, N left or right

Residual current circuit-breakers (RCCB) switch the power supply off if dangerous high residual currents occur. DFS 2 are two-terminal residual current circuit-breakers for single-phase networks. In the standard design, the compact devices are just two module widths wide. They are available with many different residual current types and variants for rated currents up to 125 A. The large two-tier terminals can also accommodate large conductor cross-sections. The trip position of the multi-function toggle switch simplifies fault-finding. The free label software helps in the labelling process. Type AC switches only detect AC residual currents. As a result, in Germany they are not approved as residual current operated protective devices. Residual current circuit-breakers in the Hz design are intended for rated mains frequencies other than 50 Hz. The frequency range for tripping current detection remains unaffected by this. Devices in design V are made for special voltages.

tripping not dependent on mains and auxiliary voltage, sensitive to AC residual currents (type AC) , compact design for all rated currents, high short-circuit resistance, double-sided two-tier terminals for large conductor cross-section and busbar, switch position indicator, viewing window for labels, multifunction switch toggle with three positions: "on", "off" and "tripped", Neutral conductor position left or right

quick fastening to mounting rail, any installation position, supply from any direction

Power supplies to TT, TN-S and TN-C-S networks with mains frequencies > 50 Hz, Not permitted for use in TN-C networks; not permitted for protecting systems in which electronic equipment may cause pulsating or smooth DC residual currents or residual currents with frequencies not equal to 50 Hz. Comprehensive protection is not provided with an RCCB type AC. For these applications we recommend our residual current circuit-breaker type A or our AC/DC sensitive residual current circuit-breaker type B/B+.
