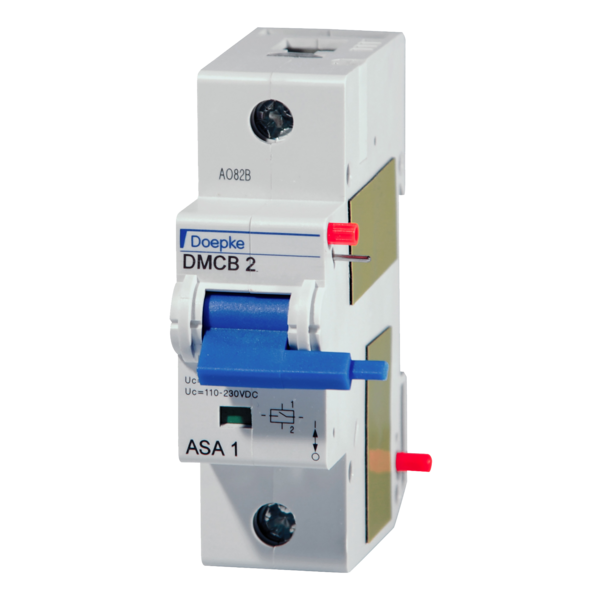

Operating current trips enable the remote tripping of, e.g. miniature circuit-breakers. The operating current trip is activated by an operating current from an external voltage source. These operating current trips are suitable for the DMCB 2 series miniature circuit-breakers. Following activation by the operating current of an external voltage source, they mechanically disconnect the coupled DMCB 2.

can be easily retrofitted, low power consumption for activation

Mounting to the left of the miniature circuit-breaker , quick fastening to mounting rail, any installation position

The operating current trips are used in conjunction with the miniature circuit-breakers DMCB 2 for remote tripping of the miniature circuit-breakers.
