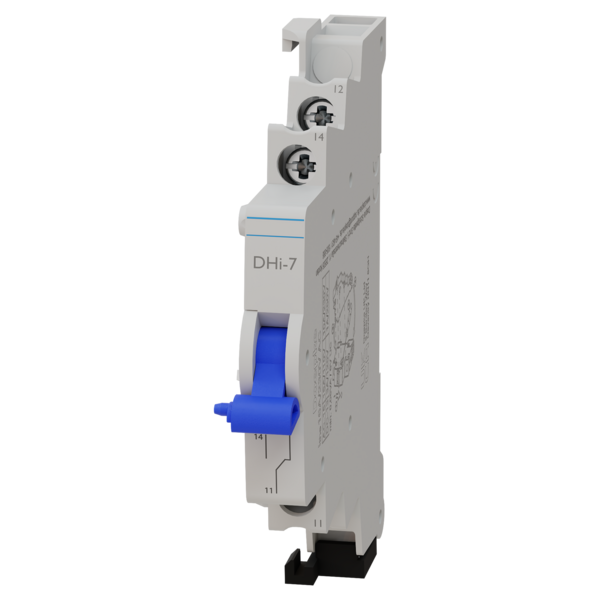

auxiliary switches DHi 7

09917988, Auxiliary switch for DLS 6, 1 CO
* Picture similar to the actual unit
  • Function: Auxiliary switch
  • suitable for model range DLS 6
  • Contact assignment: 1 CO

auxiliary switches DHi 7

09917988, Auxiliary switch for DLS 6, 1 CO
* Picture similar to the actual unit
  • Function: Auxiliary switch
  • suitable for model range DLS 6
  • Contact assignment: 1 CO

Details

Auxiliary switch for DLS 6, 1 CO

Auxiliary switches report the status of the main devices to which they are fitted. Auxiliary switches DHi 3 to DHi 8 can be retro-fitted to miniature circuit-breakers from series DLS 6 h, hsl or i. The auxiliary switch activates in parallel to the DLS 6 miniature circuit-breaker when switched off by hand or because of overload or short-circuit. Other indicators (buzzers, indicator light, etc.) can be used to display the operating status of a miniature circuit-breaker.

auxiliary switch function for DLS 6, different contact designs available, compact design (0.5 module width units), complies with IEC 60947-5-1, EN 60947-5-1 and VDE 0660-200

mounting by clamping to the right of the basic device , quick fastening to mounting rail, any installation position

These devices are suitable for querying the operating status of power supplies to residential and purpose-built buildings as well as to industrial facilities.

The auxiliary switch does not affect the function of the basic device.
